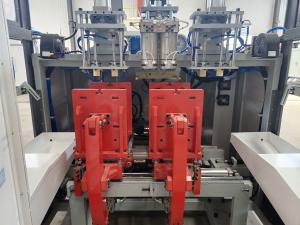

Automatic Double Stations 10l Blow Molding Machine Toggled Type Clamping

Brand Name : Sanqing

Model Number : SQ-11

Certification : CE ISO9001

Place of Origin : Hebei, China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 50 sets/month

Delivery Time : 45 days

Packaging Details : Angle frame with outside wooden case

Name : 10L Automatic Double Stations Toggled Type Clamping Blow Molding Machine, Bottle Making Machine

Dimension : 3.8*2.1*2.2m

No. of Cavities : 1/2/3/4/6

Sub-molds : Available

No. of Working Stations : 2 or 1

Weight : 2.4t

Contact Now

Product Name

10L Automatic Double Stations Toggled Type Clamping Blow Molding Machine, Bottle Making Machine

Product Description

This type of machine is able to make products like ocean balls, pitballs, milk bottles, wet wipe canisters, laundry detergent bottles, etc.

This machine has taken almost all the market proportion in Wenzhou, Zhejiang Province, southern China in the ocean balls production industry throughout the years. Which is significantly great compared to other companies in the local area.

System Item Unit Basic Parameters
Basic Plastic fit for PE/PP
Max hollow product volume L 5
No. of Die head SET 1
Size(LxWxH) M 3.5*2.1*2.2
Weight TON 5
No. of Working Station Set 2
Molds Clamping Force KN 120
Template Distance MM 220--620
Template Stroke 400
Max template size(WxH) MM 480*500
Mould thickness MM 225—300
Extrusion System screw diameter MM 75 or 65
Screw L/D ratio L/D 25:1
(HDPE)Plasticizing capacity KG/H 70
Screw heating zone ZONE 4
Screw heating power KW 16
Extrusion motor's power KW 22
Die head Die head heating zone zone 3
Die head heating power KW 9
Sprue-die dia.(max) mm 180
Oil-pump motor power KW 11
air pressure Mpa 0.6--0.8
Average power KW 35
Compressed air dosage m³/min 1.5--2.5
Cooling water dosage L/min 3--5
